AZ INTEC cats® CPA male-thread connector for corrugated tube
AZ INTEC cats® type CPA connector is designed for the direct assembly of a flat-sealing connection on a compatible cats® corrugated tube. It has a male parallel G pipe thread on the outside and a smooth machined receiving bore without an internal thread.
The connector is made of brass and is available in three versions. Each version is defined by the male thread size, nominal DN size and outside diameter of the corresponding corrugated tube.
Available versions
- G 3/8 – DN 8: for corrugated tube with an outside diameter of 11.7 mm; designation CPA-08-G3/8"A-MS; order number AZ.14-040-041
- G 1/2 – DN 12: for corrugated tube with an outside diameter of 15.6 mm; designation CPA-12-G1/2"A-MS; order number AZ.14-040-042
- G 3/4 – DN 15: for corrugated tube with an outside diameter of 20.1 mm; designation CPA-15-G3/4"A-MS; order number AZ.14-040-043
Technical specifications
- Manufacturer: AZ INTEC
- Product range: cats®
- Type: CPA
- Product type: corrugated tube connector
- External connection: male parallel G pipe thread
- Internal design: smooth machined receiving bore without an internal thread
- Sealing method: flat sealing
- Material: brass
- Sales unit: individually according to the selected size
Application
The connector is used for the direct connection of a compatible AZ INTEC cats® corrugated tube to a female-threaded connection. The flat sealing surface is formed on the end of the corrugated tube using a suitable corrugated tube compression tool.
Important: Before ordering, check the male thread size, nominal DN size and outside diameter of the corrugated tube. The dimensions 11.7 mm, 15.6 mm and 20.1 mm are the outside diameters of the corresponding corrugated tubes and not the exact diameters of the connector bores.
The suitability of the product for a particular medium and installation must be checked against the system documentation and the applicable installation requirements.

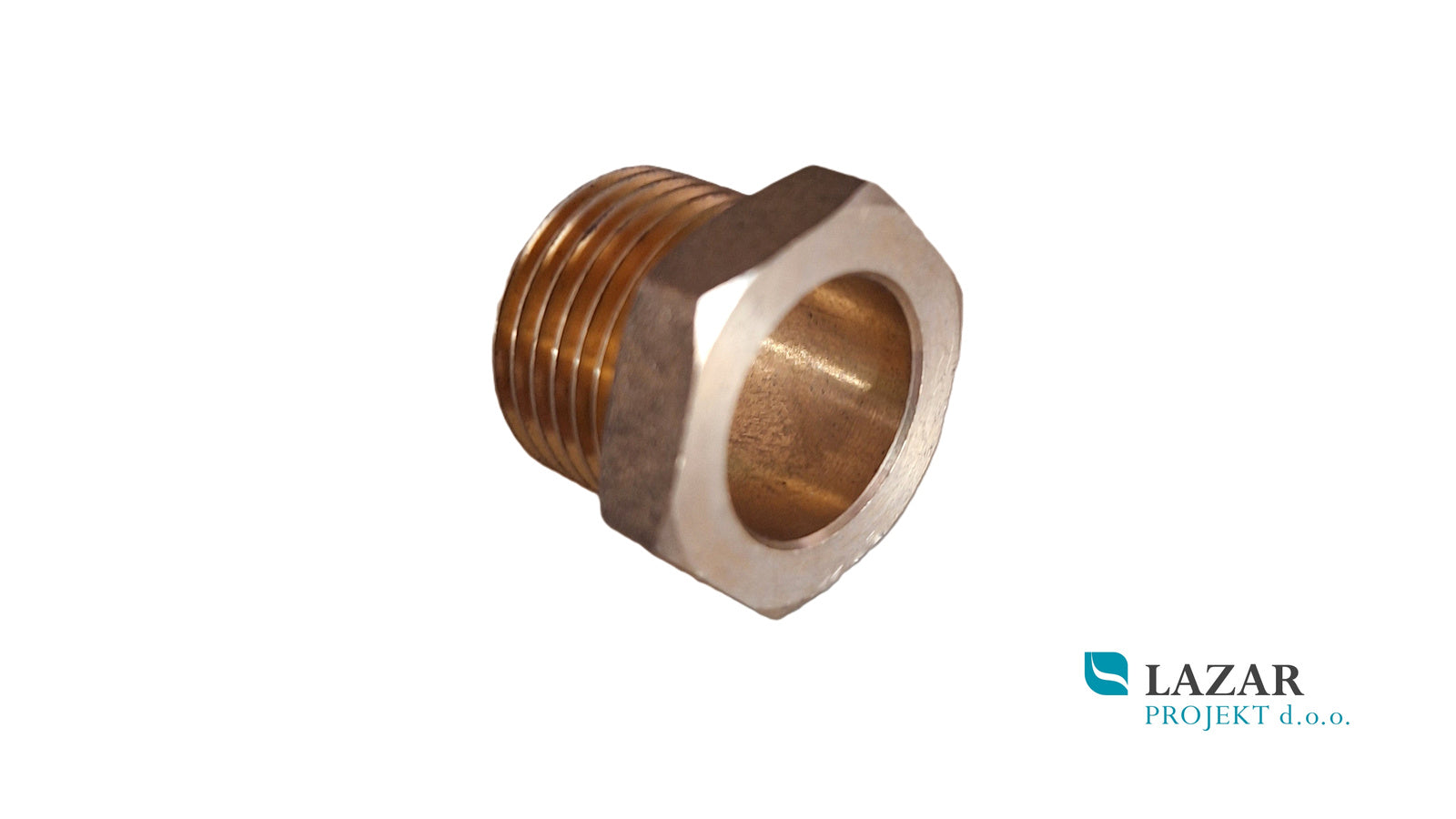

The image is for illustrative purposes and shows one of the available versions.
Price is per piece.
