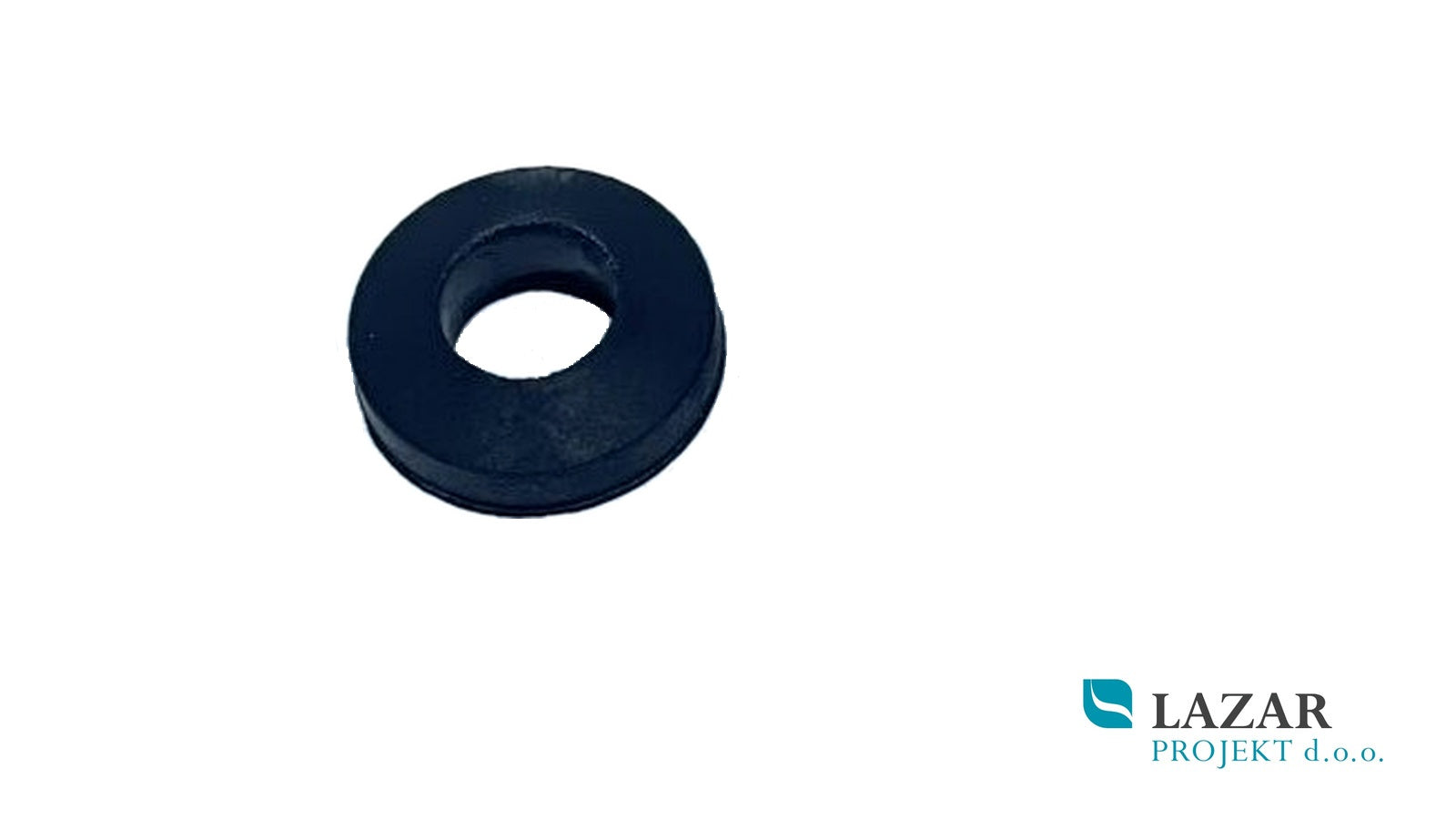

Conical rubber seal for angle valve and water heater – Ø 15 and Ø 17 mm

Conical rubber seal is designed for sealing connections in plumbing installations. Its conical shape provides a seal when the connection nut is tightened onto the appropriate fitting.

The product is available in two variants, differing in the outside diameter of the seal and the diameter of the central hole.

Ø 15 × Ø 10 mm – outside diameter Ø 15 mm and central hole Ø 10 mm. This version is intended for use with an angle valve.

Ø 17 × Ø 14 mm – outside diameter Ø 17 mm and central hole Ø 14 mm. This version is intended for a water heater connection, specifically for sealing the connecting pipe nut between the angle valve and the water heater.

Before ordering, we recommend checking the dimensions of the existing seal and its compatibility with the specific connection.

The image is for illustrative purposes only and may not represent the exact appearance or version of the actual product.

Technical specifications

Product type: conical rubber seal
Design: conical
Material: rubber
Available sizes: Ø 15 × Ø 10 mm and Ø 17 × Ø 14 mm
Size specification: outside diameter × hole diameter
Application Ø 15 × Ø 10 mm: angle valve
Application Ø 17 × Ø 14 mm: angle valve-to-water-heater connection, connecting pipe nut
Sales unit: 1 piece

Product variants

Ø 15 × Ø 10 mm – for angle valve
Outside diameter Ø 15 mm, central hole Ø 10 mm.

Ø 17 × Ø 14 mm – for water heater
Outside diameter Ø 17 mm, central hole Ø 14 mm. Designed for sealing the connecting pipe nut between the angle valve and the water heater.
