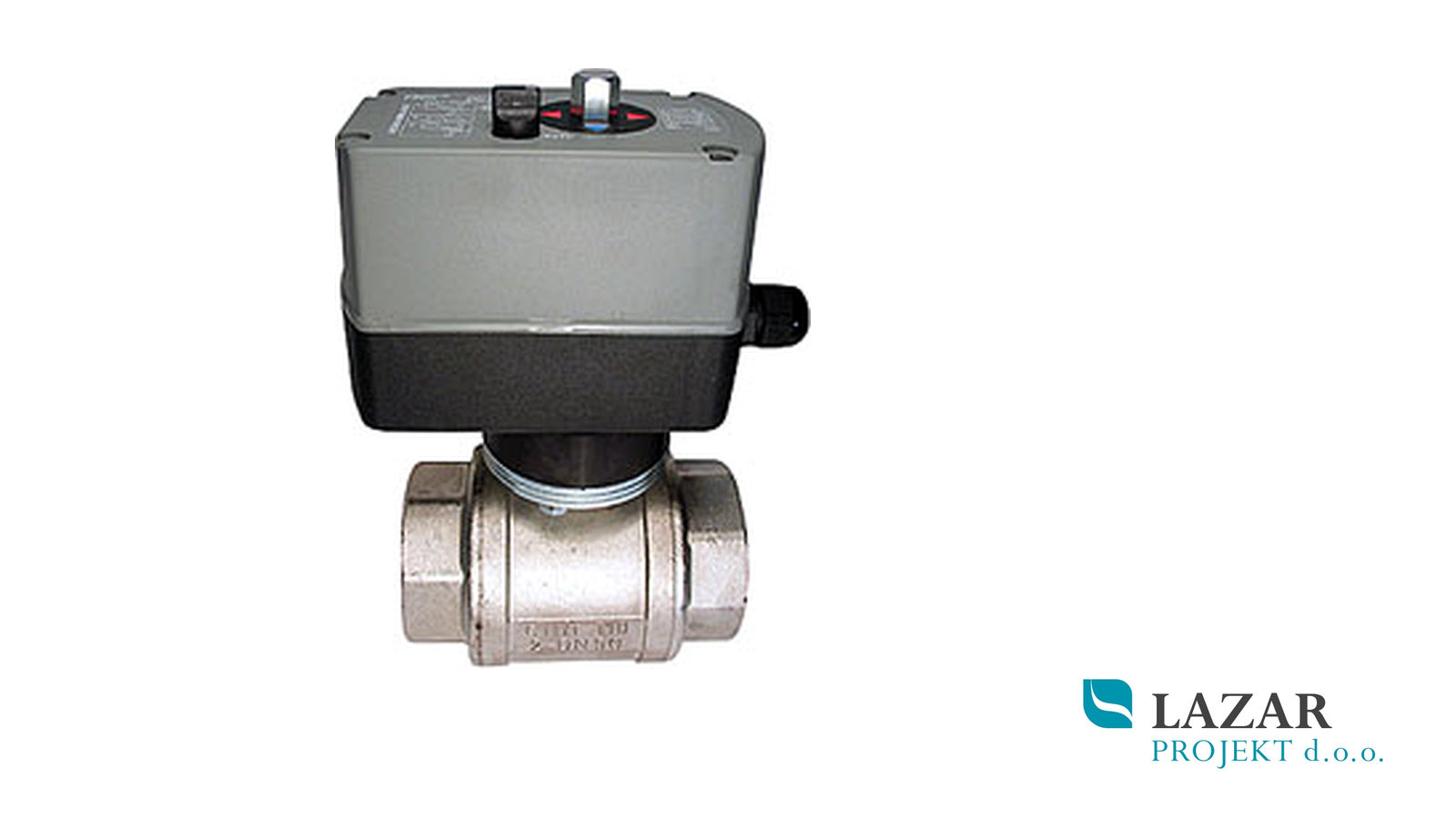

FIRŠT EMV 110 820/2410-6 Motorised Ball Valve 1 1/2 (DN 40), 230 V
FIRŠT EMV 110 820/2410-6 is a two-way motorised ball valve with 1 1/2 (DN 40) female threaded connections. It is designed for automatic flow control in heating, cooling and other installation systems using water or other suitable non-aggressive media.
The valve is equipped with an EMV 110 electric actuator operating at 230 V AC. The actuator features 3-point control, provides a maximum output torque of 25 Nm and has an operating time of approximately 105 seconds for 90° rotation.
The valve body is made of nickel-plated brass and the ball is made of hard chrome-plated brass. The valve is rated to PN 16 and has a Kvs value of 198 m³/h.
Technical data
- Manufacturer: FIRŠT
- Model: EMV 110 820/2410-6
- Manufacturer code: 11226
- Valve type: two-way ball valve with electric actuator
- Connection: female thread
- Connection size: 1 1/2 (DN 40)
- Nominal pressure: PN 16
- Kvs: 198 m³/h
- Supply voltage: 230 V AC
- Frequency: 50/60 Hz
- Control: 3-point
- Maximum output torque: 25 Nm
- Operating time: 105 s / 90°
- Power consumption: 5 W
- Actuator protection rating: IP54
- Medium temperature: 0 to 110 °C
- Ambient temperature: 0 to 55 °C
- Connection cable length: 1.5 m
- Valve body: nickel-plated brass
- Ball: hard chrome-plated brass
- Ball seal: PTFE
- Assembly weight: approx. 3.0 kg
Note: This is an older model. Before ordering, please check the technical specifications, control type and connection dimensions for compatibility with the existing installation.
Packaging condition: The packaging is in poorer condition and shows signs of long-term storage.
