Hansgrohe Metris E 31671000 concealed shower mixer finish set, chrome
Hansgrohe Metris E 31671000 is a finish set for a single-lever concealed shower mixer from the older Metris E collection. It is designed for final installation onto a compatible Hansgrohe concealed basic set and provides single-lever control of water flow and temperature.

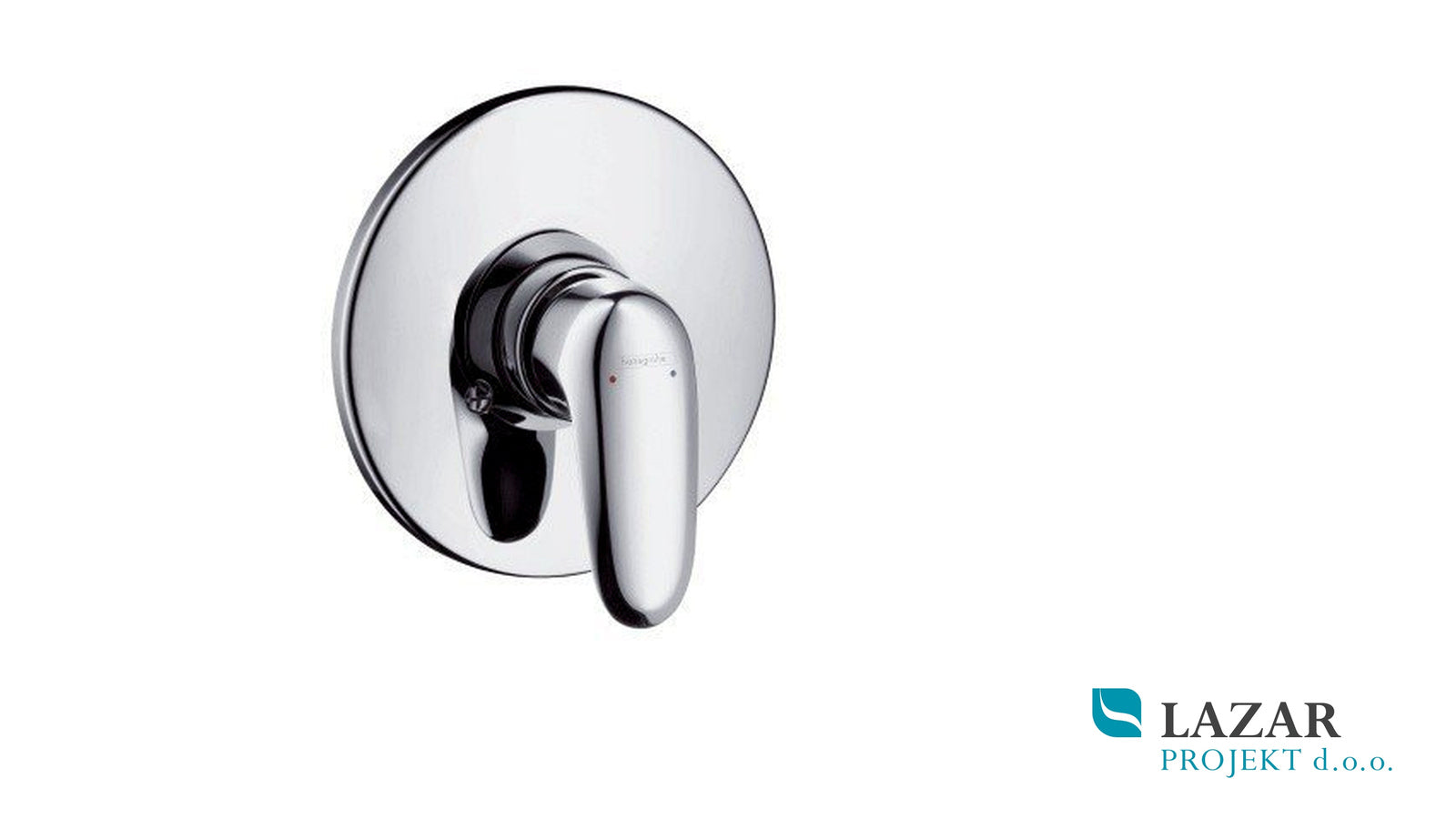

The visible components consist of a round chrome escutcheon and the characteristic Metris E operating handle. The concealed installation keeps the functional and connection components hidden inside the wall, leaving only the elegant exposed trim in the shower area.
The finish set is designed for installation with the Hansgrohe 13620180 basic set. This basic set features a DN 15 connection size, ceramic cartridge, adjustable temperature limitation and an installation depth range of 55 to 83 mm.
If the concealed basic set has been installed too deeply in the wall, the Hansgrohe 32698000 extension set can be used to extend the installation. The actual installation depth and compatibility of the existing concealed basic set should be checked before installation.
This product is no longer part of the current Hansgrohe production range. According to official Hansgrohe information, article 31671000 was produced from June 2006 until December 2013.
Technical specifications
Manufacturer: Hansgrohe
Series: Metris E
Article number: 31671000
Product type: finish set for single-lever concealed shower mixer
Installation: concealed installation
Operation: single lever
Number of functions: 1

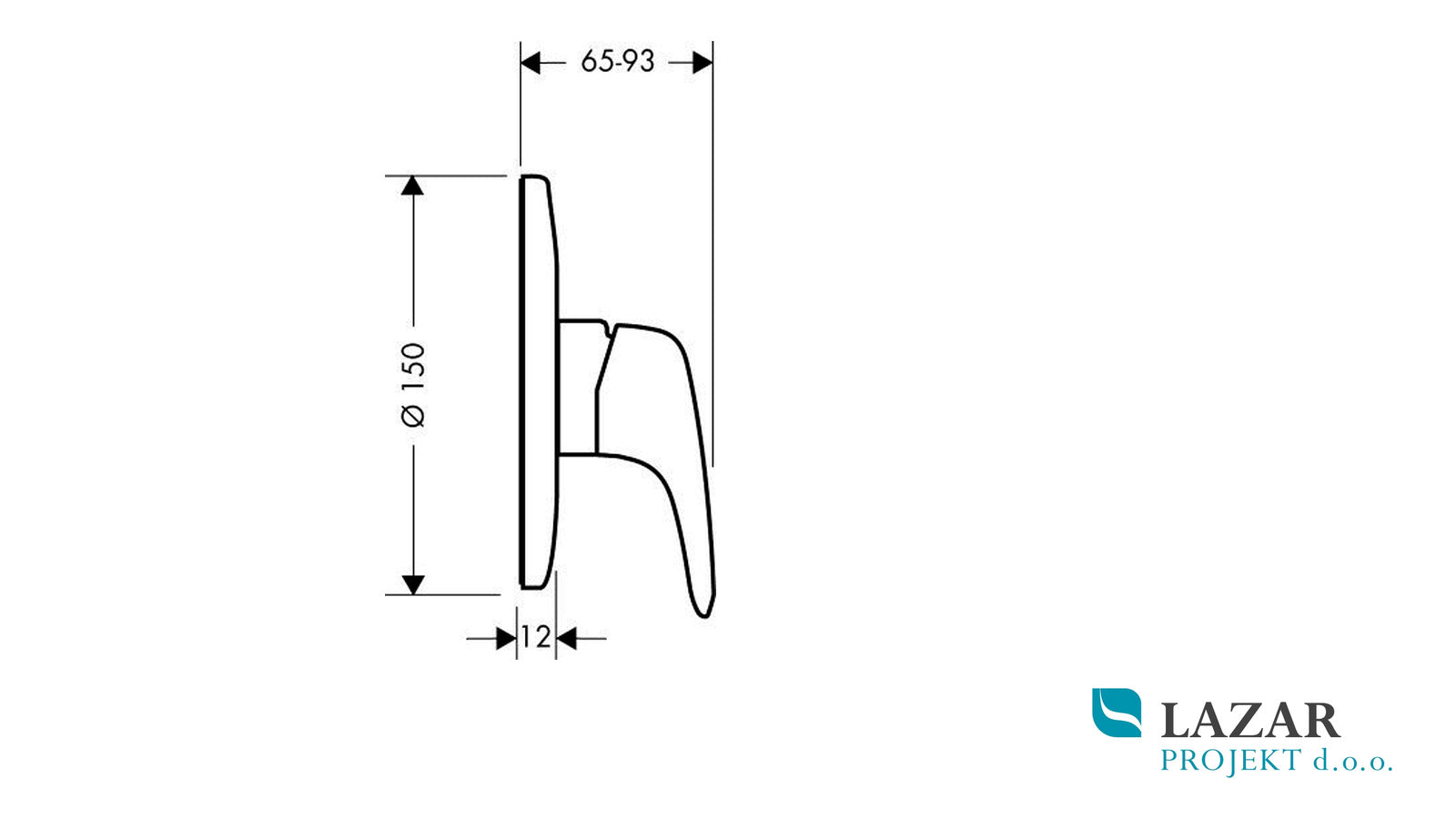

Escutcheon diameter: Ø 150 mm
Projection from wall: approx. 65–93 mm
Escutcheon thickness: approx. 12 mm
Surface finish: chrome
Colour: chrome / polished silver
Required basic set: Hansgrohe 13620180
Basic set connection size: DN 15
Basic set cartridge: ceramic
Temperature limitation: adjustable
Basic set installation depth: 55–83 mm
Extension for deeper installation: Hansgrohe 32698000
Production period: 06/2006–12/2013
Status: discontinued product
Important: article 31671000 is the exposed finish set of the concealed shower mixer. Basic set 13620180 and extension set 32698000 are not included with this article.
