Kovinoplast Laharnar OBS-2 dvojna plastična objemka za dve cevi
  • Kovinoplast Laharnar OBS-2 dvojna plastična objemka za dve cevi

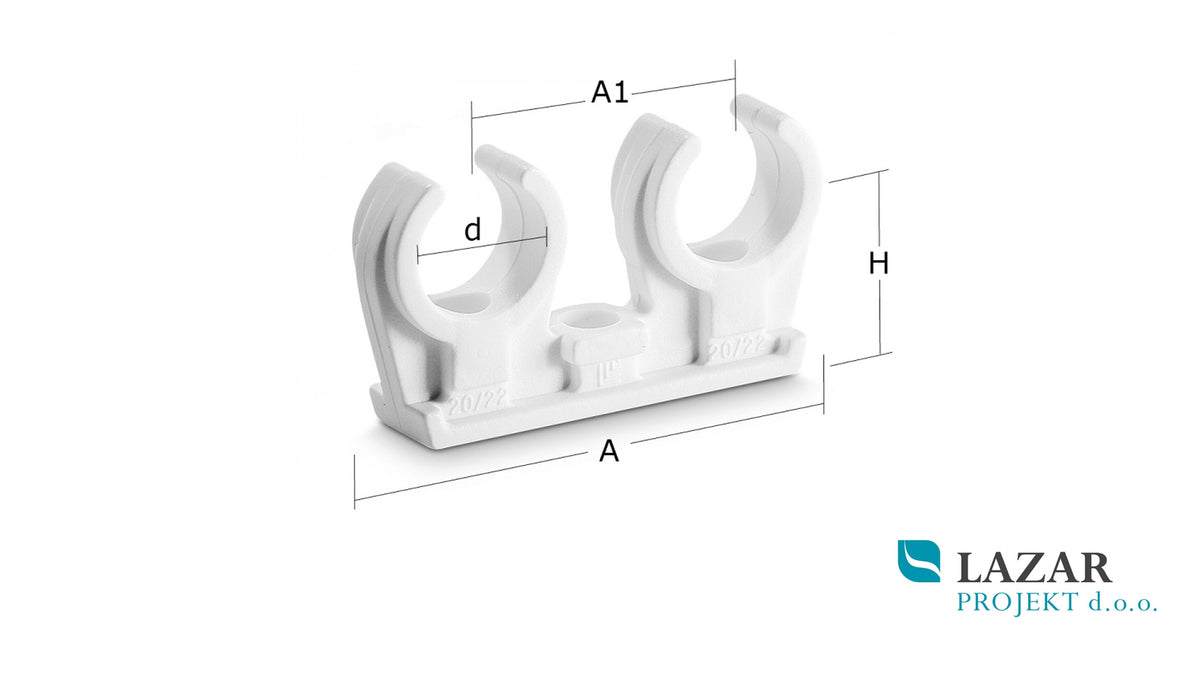

  • Dimenzije dvojne plastične objemke Kovinoplast Laharnar OBS-2 – A, A1, H in d
Kovinoplast Laharnar OBS/1 single plastic pipe clip

Kovinoplast Laharnar OBS/1 single plastic pipe clip

0,39 €
Dimension
Quantity
In stock: 100

The Kovinoplast Laharnar OBS-2 double plastic pipe clip is designed for the parallel installation of two copper, metal or plastic pipes. It provides a neat, stable and quick solution for securing pipe installations.

The clip is suitable for direct installation on a supporting surface or mounting on a C-profile. It is manufactured from temperature-resistant plastic and is available in different dimensions for pipes with outside diameters from 6 to 35 mm.

Key features

  • double clip for the parallel installation of two pipes;
  • suitable for copper, metal and plastic pipes;
  • suitable for direct installation or mounting on a C-profile;
  • manufactured from temperature-resistant plastic;
  • available for pipe outside diameters from 6 to 35 mm;
  • available individually or in complete factory packs;
  • manufacturer: Kovinoplast Laharnar.

Material and temperature resistance

  • PP: temperature resistance from –30 °C to +90 °C;
  • PA: temperature resistance from –30 °C to +120 °C.

Dimensions and packaging

Version A A1 H Manufacturer code Factory pack
OBS-2 – 6 mm 35 mm 23 mm 11 mm 0007 100 pieces
OBS-2 – 8 mm 40 mm 26 mm 14 mm 0004 100 pieces
OBS-2 – 10 mm or 1/4″ 45 mm 29 mm 15 mm 0003 100 pieces
OBS-2 – 12 mm 54 mm 32 mm 16 mm 0005 100 pieces
OBS-2 – 14–15 mm 61 mm 36 mm 18 mm 0006 100 pieces
OBS-2 – 16 mm 64 mm 38 mm 23 mm 0008 100 pieces
OBS-2 – 18 mm 64 mm 38 mm 23 mm 0009 50 pieces
OBS-2 – 20–22 mm or 1/2″ 74 mm 44 mm 28 mm 0010 50 pieces
OBS-2 – 28 mm or 3/4″ 95 mm 54 mm 33 mm 0011 50 pieces
OBS-2 – 35 mm or 1″ 114 mm 64 mm 38 mm 0851 25 pieces

Product selection: select the required clip dimension and quantity before ordering. The price applies to the selected quantity – one piece or the stated complete factory pack.

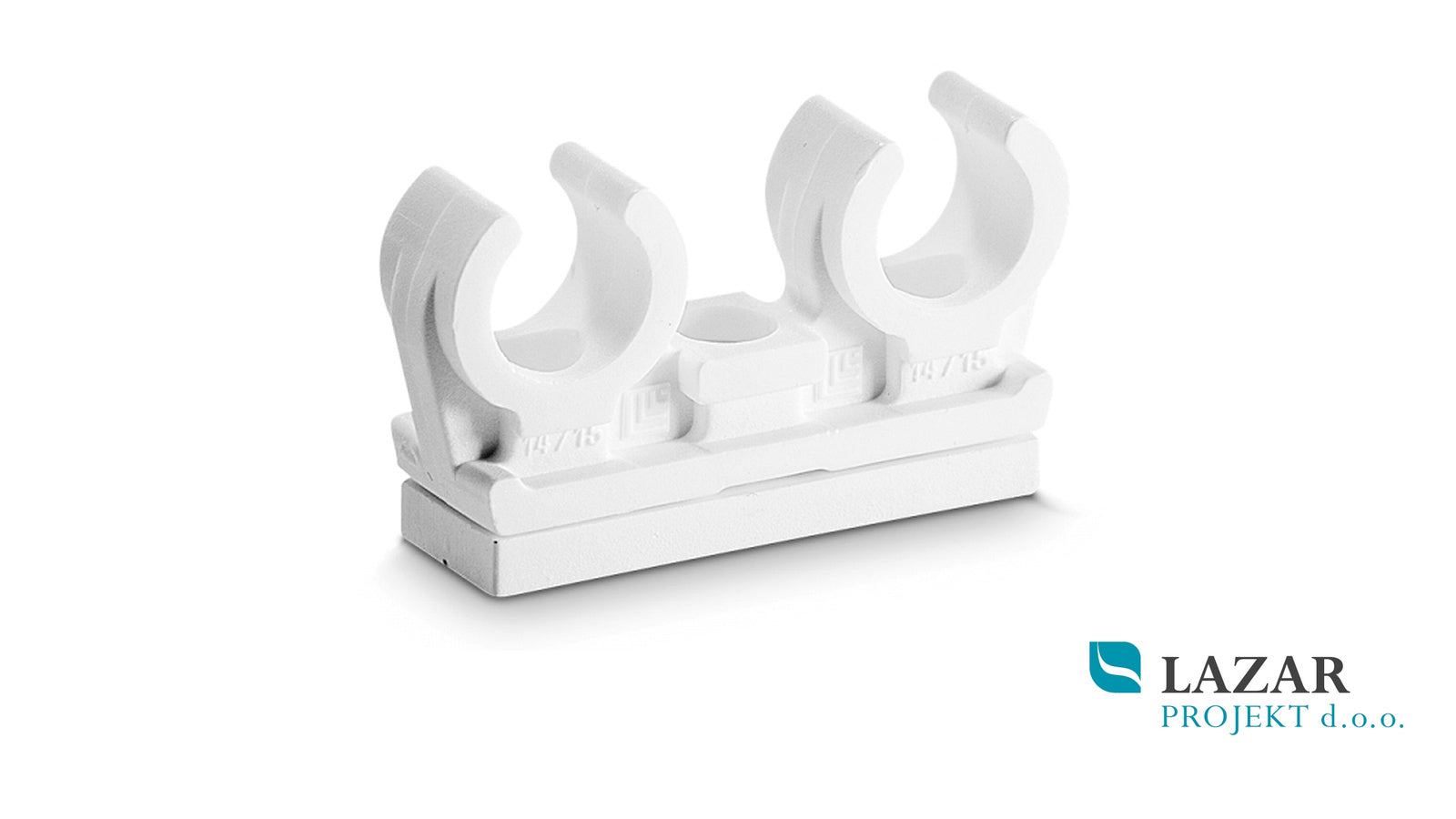

The photograph shows one of the available dimensions. The shape and proportions of the product may vary slightly depending on the selected dimension.
