Mounting Plate for Tap Connections 240 × 380 × 40 mm – 7477

Mounting Plate for Tap Connections – 7477

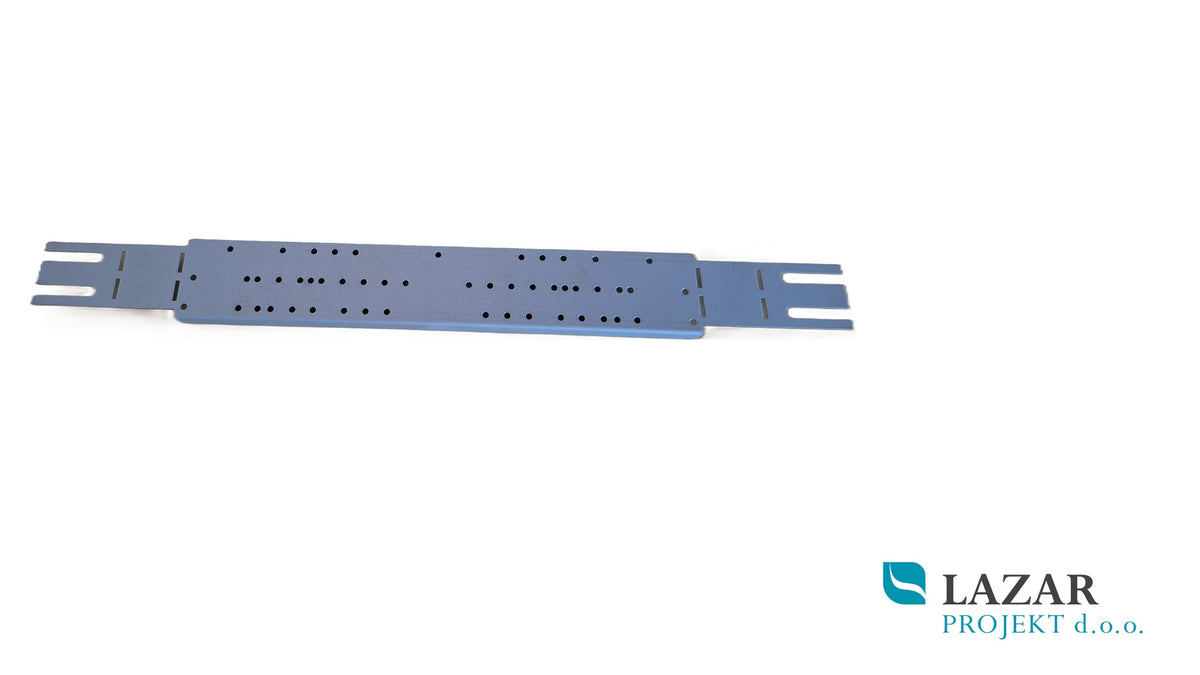

This metal mounting plate is designed to secure and position plumbing connections for a tap or mixer. The arrangement of holes allows suitable fixing positions to be selected according to the connections and installation method.

Details and dimensions

• Article number: 7477.
• Purpose: securing tap connections.
• Fixing section length: 240 mm.
• Overall plate length: 380 mm.
• Width: 40 mm.
• Construction: metal plate with fixing holes.

Installation

Before installation, check that the fixing holes match the selected tap connections. Secure the plate to a suitable mounting surface and position the connections at the spacing required by the selected tap or mixer.

Tap connections and the tap or mixer are not part of the plate.
