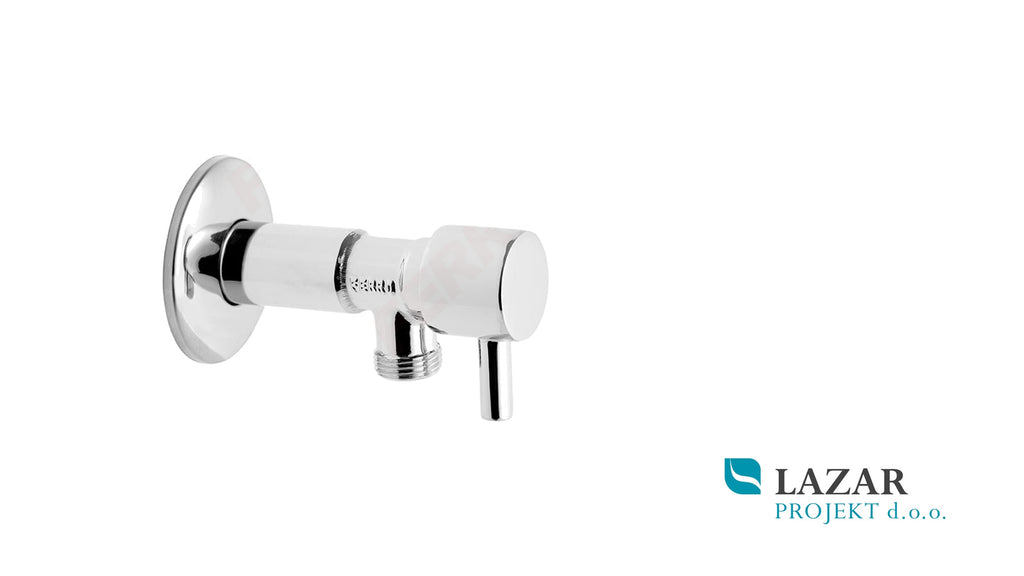

FERRO Z1234C angle valve G 1/2 × G 3/4 with ceramic shut-off – chrome

FERRO Z1234C is a chrome-plated angle valve designed for connecting a washing machine, dishwasher or another supply hose with a G 3/4 union nut to the water supply system.

The valve has a G 1/2 male parallel inlet connection for installation into the water supply and a G 3/4 male parallel outlet connection. The supplied chrome-plated escutcheon covers the wall connection and provides a neat installation finish.

Water flow is controlled by a metal handle and a ceramic shut-off mechanism. The ceramic mechanism allows the valve to be opened and closed with a short turn of the handle and does not use a conventional rubber sealing washer.

The valve is designed for use with water at a maximum operating pressure of 10 bar and a maximum operating temperature of 100 °C. The overall product length is approximately 98 mm.

Technical specifications

Manufacturer: FERRO
Product code: Z1234C
Product type: angle valve
Inlet connection: G 1/2, male parallel thread
Outlet connection: G 3/4, male parallel thread
Shut-off mechanism: ceramic shut-off
Operation: short turn of the metal handle
Medium: water
Maximum operating pressure: 10 bar
Maximum operating temperature: 100 °C

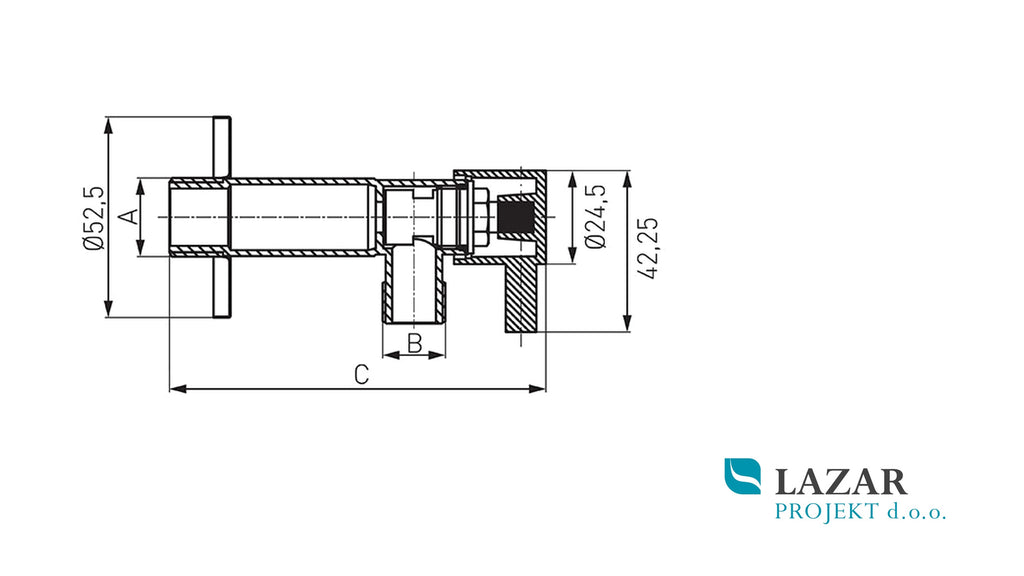

Length: approximately 98 mm
Surface finish: chrome-plated
